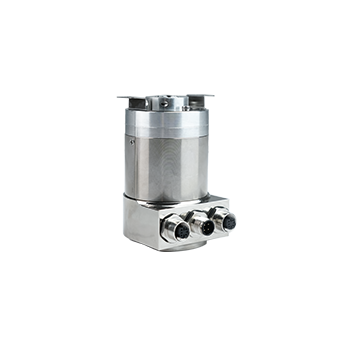

DIN58 Series
Summary
Technical specifications
Application
Related products
Download
Summary
Gallery
Video
Product characteristics
Product advantages

Inductive Measurement Principle, high precision and  high stability;

Resolution of up to 4096 (multi-turn) and 131072  (single-turn);

Flexible Connection Options, Suitable for a Variety of  Applications;

Supports Multiple Protocols, Enhanced Compatibility.






Technical specifications
System
Outer Diameter φ58mm
Shaft Diameter Output shaft diameter φ 6 / 10 mm; Blind hole diameter φ 10 / 12 / 14 / 15 mm
Resolution Single-turn: maximum support 131072 (17bit); Multi-turn:4096 (12bit)
Operating Speed ≤6000rpm
Interface CANopen, SSI, ProfiNET, EtherCAT
Starting Torque 0.05NM
Absolute positioning accuracy ±0.01°
Repetitive positioning accuracy ±7 arc-sec
Electrical
Supply Voltage 10-30V
Main power supply current consumption (typical) 76mA
Differential Output Level High level≥2.4V; Low level≤0.4V
Insulation Resistance 50MΩ
Edge Change Time 10ns
Environment
Operating Temperature -40℃~85℃
Hurnidity 95%,No Condensing
Auxiliary Functions Reverse Polarity Protection, Configurable Resolution, Configurable Rotation Direction, Configurable Zero Position
Electrical Interface Aviation Plug, Wire Release
IP Rating IP 67
Shock 100g, 2ms (EN 60068-2-27)
Vibration 30g, 10Hz ... 2000Hz (EN 60068-2-6)
